Bronco TGR Compressor Mounting Kit

Bronco TGR Compressor Mounting Kit

$150.00 USD
$150.00 USD
Sale Sold out

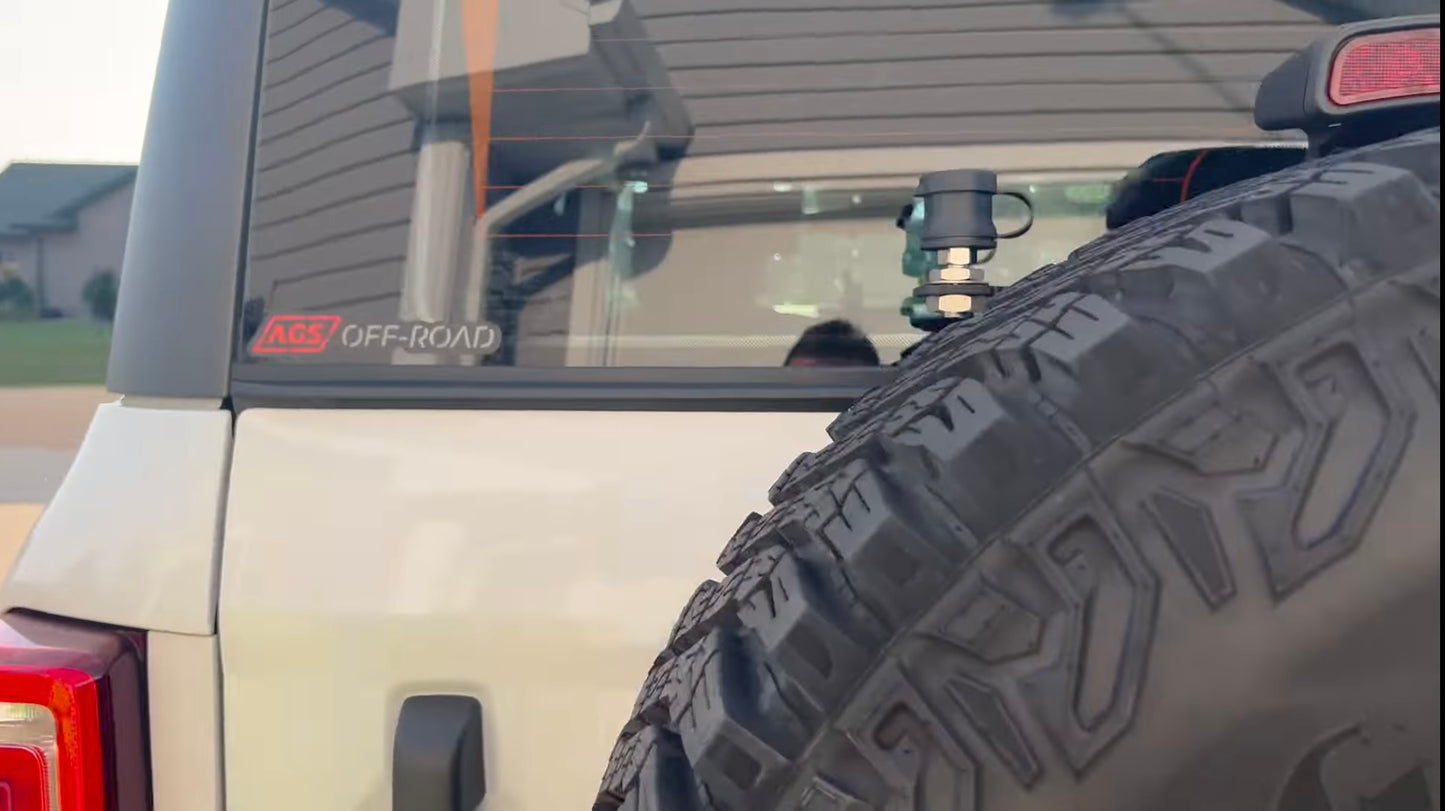

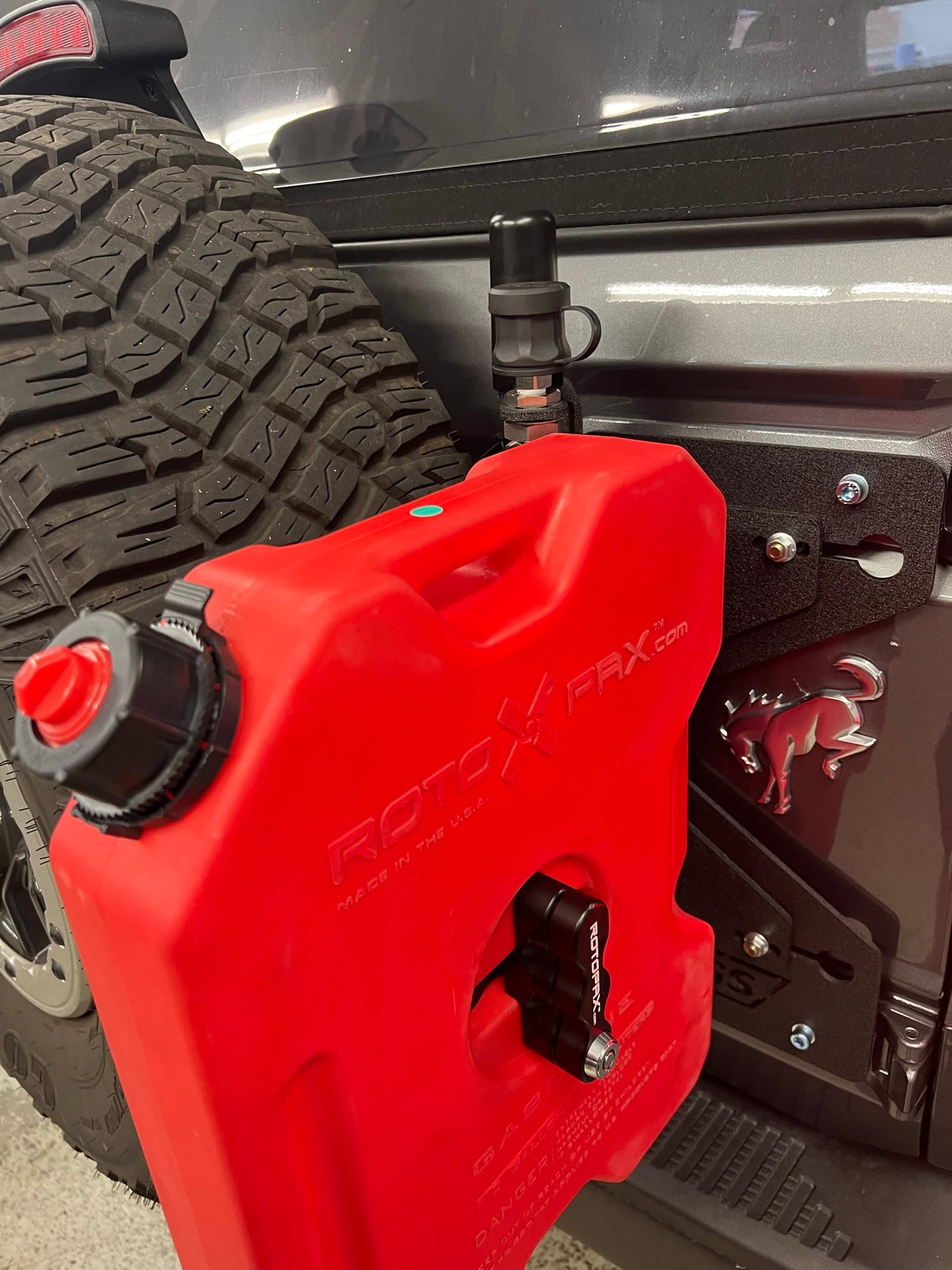

Air-chuck location

***Pre-Order***

***Expected to ship early October 2023***



Take your off-road experience to the next level with the Bronco TGR Compressor Mounting Kit. With everything included to mount your ARB Twin Compressor to the Tailgate Reinforcement, this kit is similar to our Air-Gate Kit and allows you to cleanly install your wiring, air hose and air-chuck. You also have the choice of three available mounting locations for the air chuck- in between your spare tire spokes, to the left of the tire, or to the right. This kit also includes all necessary components to relocate the compressor suction filters to the interior of the vehicle guaranteeing cool/clean air to maximize your compressors potential!



Features

  • Made in the USA
  • High quality zinc/stainless hardware
  • Textured black powder coat
  • Modular Design
  • Injection Molded
  • UV-stabilized polycarbonate



Contents

Antenna/Quick Connect Coupler Mount [Option 1]

  • (1) Antenna/Air-Chuck Mount
  • (2) Carriage Bolt M8-1.25x20
  • (2) Flat Washer M8x18
  • (2) Nylon Locknut M8-1.25
  • (1) Stainless Steel Bulkhead ¼” NPT

In-wheel Accessory Mount W/ Quick Connect Coupler Mount

[Option 2]

  • (1) In-Wheel Accessory Mount
  • (2) Flat Head Bolt M6-1x35
  • (1) Quick Connect Coupler Mount
  • (2) Button Head Bolt M6-1x15
  • (1) Stainless Steel Bulkhead ¼” NPT

 Tailgate Pass-Through [Option 1 & 2]

  • (1) Tailgate Pass-Through
  • (1) O-ring
  • (6) Low Profile Socket Head Bolt M5-.08x25
  • (6) Custom M5 Tab Nut
  • (1) M25 Cord Grip
Air Hose & JIC Fittings [Option 1 & 2]
  • (1) 30” Stainless Steel Braided PTFE Air Hose with Female JIC-04 (1/4") Fittings [Option 1A]

         or

  • (1) 12” Stainless Steel Braided PTFE Air Hose with Female JIC-04 (1/4") Fittings [Option 2]
  • (2) JIC-04 (1/4") X 1/4" NPT Male 90-degree Fitting

Quick Connect Coupler [Option 1 & 2]

  • (1) ¼” NPT Quick Connect Coupler

Twin Compressor Filter Relocation Kit [Option 1 & 2]

  • (2) Brass Bulkhead ¼” NPT
  • (4) Push to Connect Fitting
  • (2) 6" Nylon Hose





*All products designed/distributed by AGS Off-Road are intended for off-road use only

*Intended for use with AGS Off-Road products only

*Additional wire to extend compressor harness not included

*Intended for use with 17"+ wheels

*Can not guarantee fitment on all wheel styles/sizes
