AGS OFF-ROAD

2022+ Bronco Raptor Air-Gate Kit

2022+ Bronco Raptor Air-Gate Kit

Regular price $429.99 USD
Regular price Sale price $429.99 USD
Sale Sold out
In-Wheel Accessory Mount/Quick Connect Coupler Mount Finish
Current Lead Time: 2-3 Days

Our popular Twin Air Compressor Mount is now available for Bronco Raptor! The AGS Off-Road Air-Gate Kit includes everything you need to mount your ARB Twin Air Compressor and air chuck to your Bronco Raptor's tailgate. Also route your wiring harness to the interior of the vehicle using the included Modular Tailgate Pass-Through.

* Installation Video

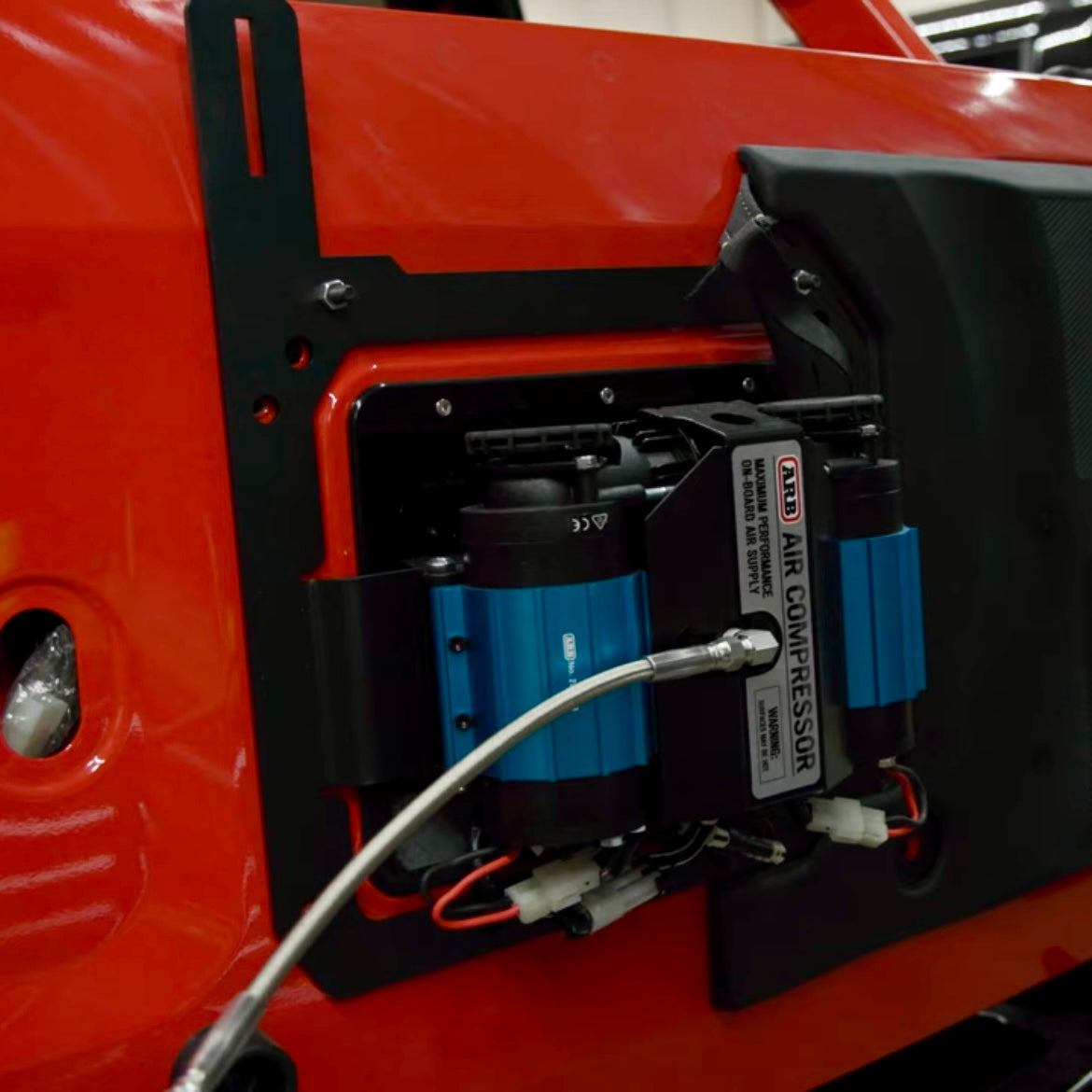

  1. The Tire Carrier Compressor Mount allows mounting of your ARB Twin Air Compressor inside of your Bronco Raptor’s spare tire carrier. Kept away from the hot engine bay, your ARB Twin Air Compressor is hidden while allowing quicker air access than other mounting options. Utilizing existing mounting hardware, this is a no-drill/no-cut installation.

Features

  • Laser cut, precision bent 3/16" cold rolled steel
  • Textured powder coat
  • High quality zinc hardware
  • Made in the USA¬† ¬† ¬† ¬† ¬† ¬† ¬†

Contents

  • (1) Tire Carrier Compressor Mount¬†
  • (8) M8x1.25x30 Bolts
  • (8) M8 washers¬†
  • (2) M8 Instillation studs
  • (2) M8x1.25 Nuts
  • (2) Flat Head M6x1x20
  • (4) Adhesive back foam rings



2.  The Modular Tailgate Pass-Through takes clean accessory installations to a new level. Using one of the Bronco Raptor’s factory cabin pressure relief ports (behind spare tire carrier), the Modular Tailgate Pass-Through allows a weather resistant, safe, and clean way to pass wiring and more from the interior to the exterior of your Bronco Raptor. This is a no-cut, no-drill installation, and there are no noticeable changes in cabin pressure relief after install.

Features

  • Injection molded¬†
  • UV-stabilized polycarbonate
  • High quality zinc/stainless hardware
  • O-ring seal¬†
  • Modular design
  • Made in the USA¬†¬†

Contents

  • (1) Tailgate Pass-Through
  • (1) O-ring¬†
  • (6) M5x.08x25 Low profile socket head bolts
  • (6) Custom M5 tab nuts¬†
  • (1) M24 cord grip¬†



3.  The In-Wheel Accessory Mount allows you to mount accessories inside the spokes of your spare tire.

Features

  • Laser cut 3/16" Aluminum (Optional Finish)
  • No cut/No drill instillation¬†¬†
  • Modular Design¬†
  • Made in the USA

Content

  • (1) In-wheel accessory mount¬†
  • (2) Flat head M6x1x35 bolts



4.  The Quick Connect Coupler Mount, when used with the In-Wheel Accessory Mount (IWAMFB21), allows you to mount an air chuck between the spokes of your Bronco Raptor’s spare tire. The adjustable design works with both factory and  aftermarket wheels, and gives your Bronco Raptor a sleek and convenient spot to hook up your air hose.

Features

  • Laser cut 3/16" Aluminum (Optional Finish)
  • Adjustable design¬†

Contents

  • (1) Quick Connect Coupler Mount
  • (1) Stainless Steel bulkhead¬†
  • (2) M6x1x20 bolts
  • (2) M6x1 nuts
  • (2) M6 washers¬†



5.  12" Air Hose + JIC Fittings

 Contents

  • (1) Stainless steel braided PTFE Air Hose with female JIC-04 (1/4") fittings¬†¬†
  • (2) JIC-04 (1/4") X 1/4" NPT Male 90 degree fittings¬†



6.  The design of this Quick Connect Coupler allows for easy one handed operation making it the perfect option for mounting in tight spaces.

Features

  • Integrated dust cap
  • Rubberized cover
  • 1/4" NPT male threads
  • Accepts Industrial (M style) male plugs¬†

Contents

  • (1) Quick Connect Coupler

 7. The Filter Relocation Kit allows the compressor’s factory intake filters to be mounted inside of the tailgate, this allows your air compressor’s internals to be isolated from the dusty, wet, hot conditions of of hardcore off-roading. The compressor can now take in air from the clean, climate controlled interior of the vehicle while still being mounted outside, keeping noise levels to a minimum.

Features

  • Meets compressor manufacturers specifications
  • Easy installation¬†
  • High quality brass, zinc, stainless hardware¬† ¬†

Contents

  • (2) Stainless Steel bulkhead fittings
  • (4) Push to connect fittings¬†
  • (2) 6" Nylon hose¬†









*All products designed/distributed by AGS Off-Road are intended for off-road use only

*Intended for use with AGS Off-Road products only

*Additional wire to extend compressor harness not included

*Intended for use with 17"+ wheels

*Can not guarantee fitment on all wheel styles/sizes
